When a 2014 Mercedes-Benz E63 AMG W212 rolled into our Philadelphia shop with engine performance issues, our team at TOP CONCEPT LLC knew exactly what needed to be done. This hand-built AMG 5.5-liter V8 biturbo engine — one of the most powerful production engines Mercedes has ever created — required a complete engine-out rebuild. Here is the full story of how we brought this 577-horsepower beast back to life.
Signs Your Mercedes-AMG V8 Needs Engine Service

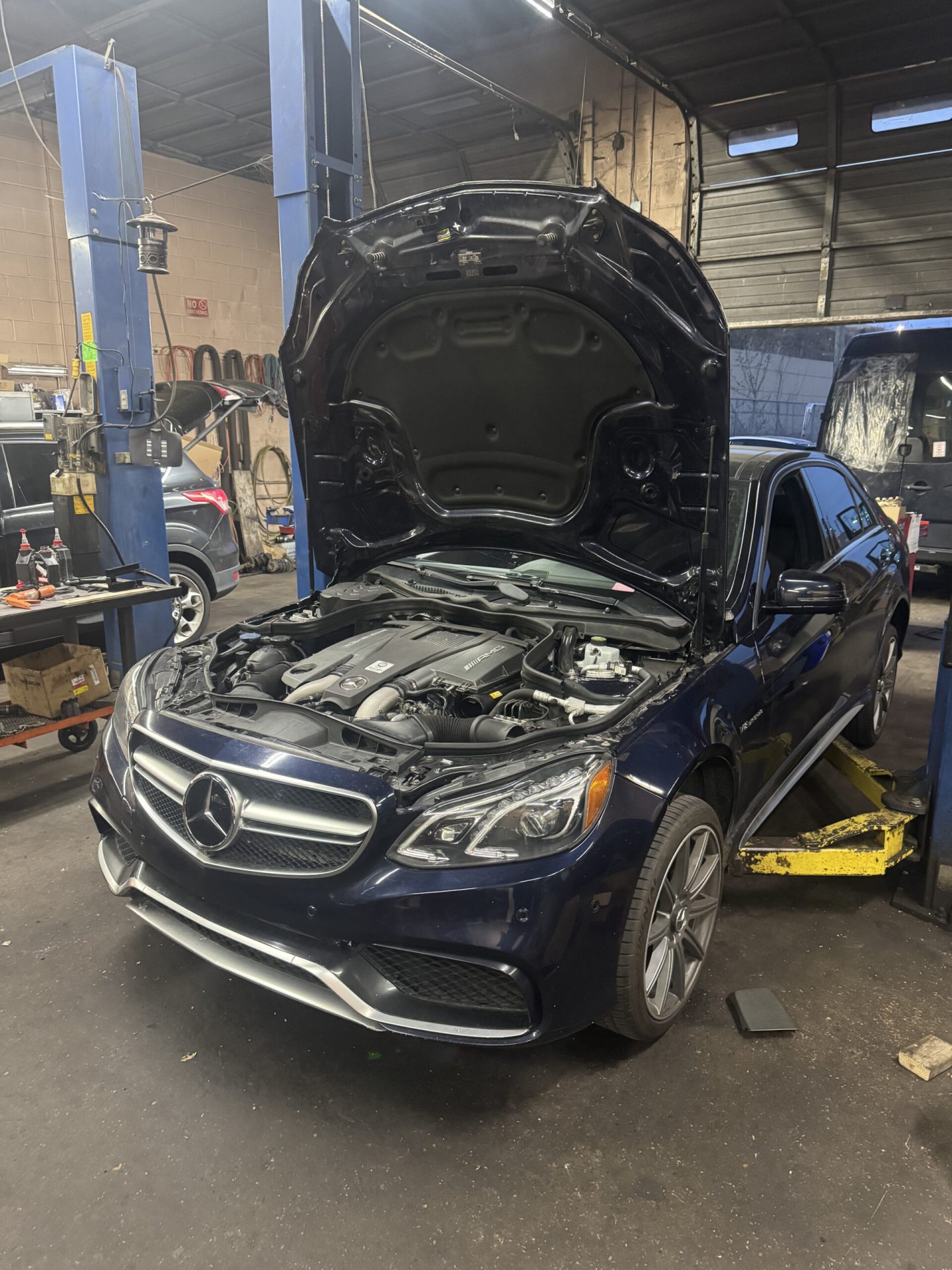

The owner of this dark blue E63 AMG noticed several warning signs that brought them to our auto repair shop in Philadelphia:
- Check engine light illuminated with multiple fault codes
- Reduced power and rough idle at startup
- Unusual ticking noise from the engine bay
- Oil consumption higher than normal
- Coolant level dropping without visible leaks
These symptoms in a Mercedes-AMG V8 biturbo often point to cylinder head gasket failure, worn timing chain components, or internal engine wear — all issues that require expert diagnosis and repair.
AMG Hand-Built Engine: What Makes It Special

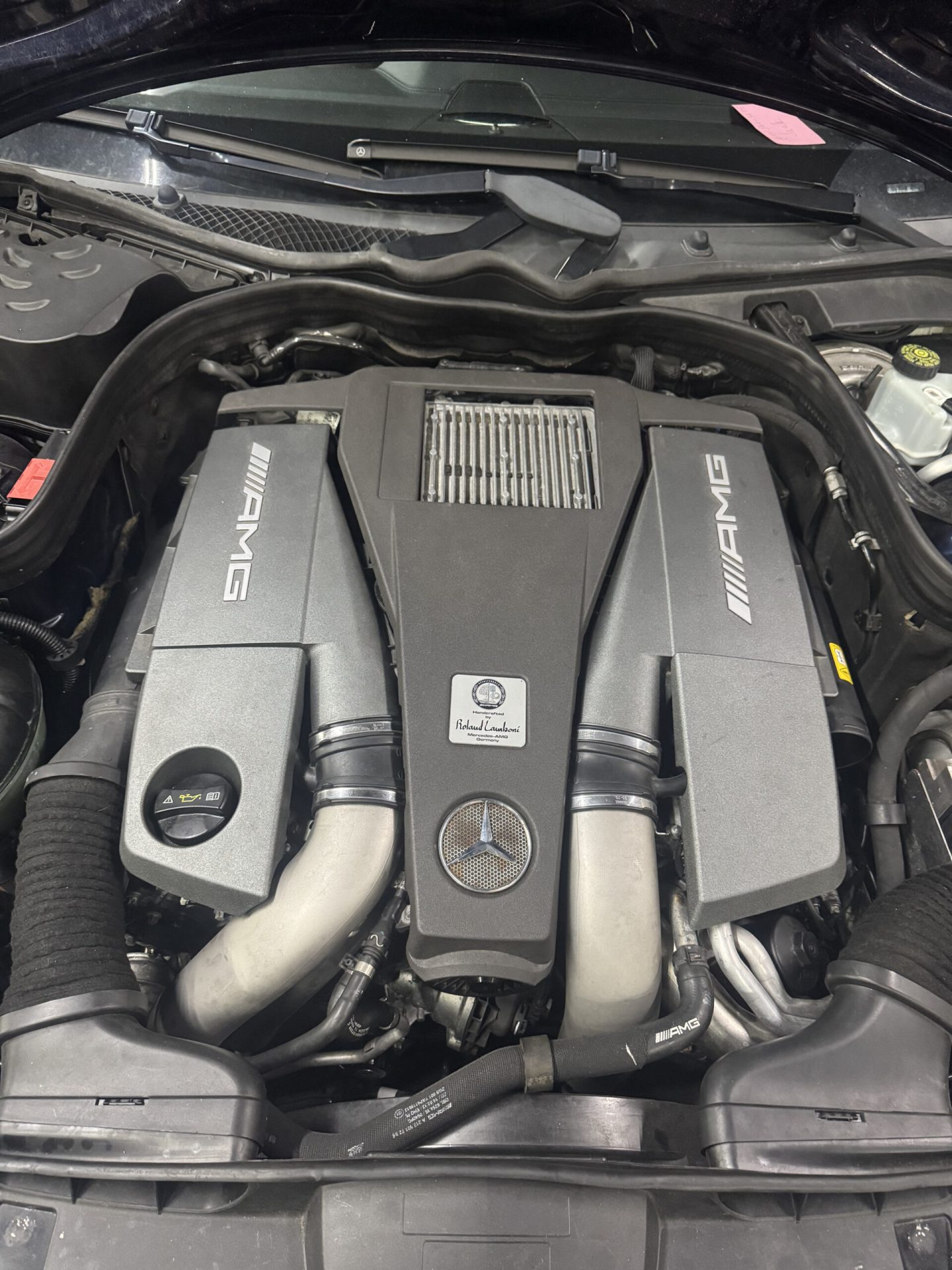

Every Mercedes-AMG engine follows the “one man, one engine” philosophy — a single master technician hand-assembles the entire engine and signs a plaque mounted on top. This M157 5.5-liter twin-turbocharged V8 produces 577 horsepower and 590 lb-ft of torque. Working on these engines requires specialized knowledge that most general repair shops in Philadelphia simply do not have.
At TOP CONCEPT, our technicians have extensive experience with European performance engines, including Mercedes-AMG, BMW computer diagnostics, and Porsche engine rebuilds.
Complete Engine Removal Process
For a job this extensive, the entire engine and transmission assembly must come out as a unit. Our process included:
- Diagnostic scan — Full computer diagnostics using Mercedes-specific scan tools to identify all fault codes
- Fluid drain — Removing all engine oil, coolant, and transmission fluid
- Disconnecting systems — Carefully labeling and disconnecting all electrical connectors, vacuum lines, fuel lines, and coolant hoses
- Exhaust separation — Disconnecting the exhaust system downpipes from the turbochargers

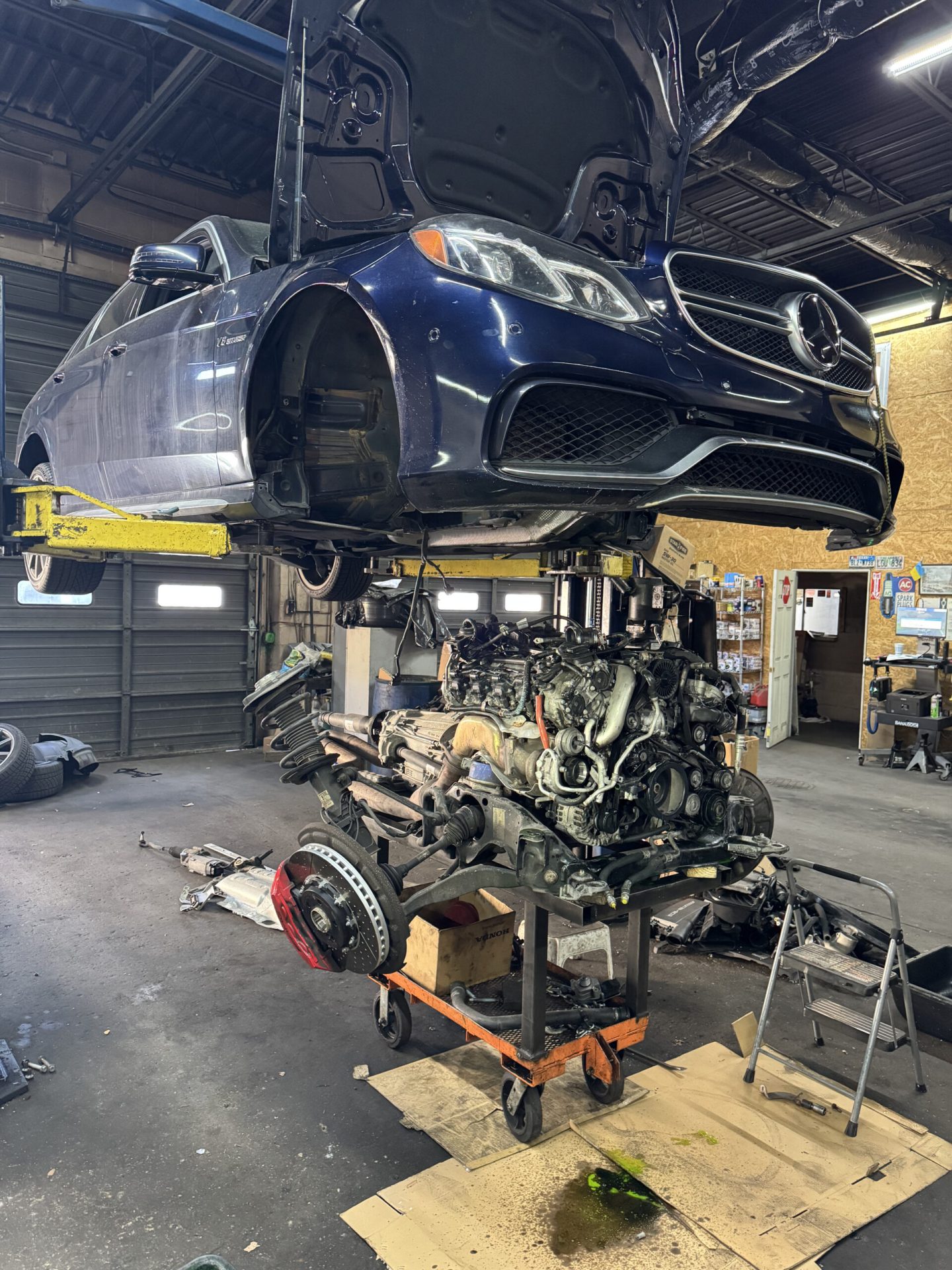

- Engine drop — Using our professional hydraulic lift and engine cart to lower the entire powertrain assembly
Cylinder Head and Timing Chain Service

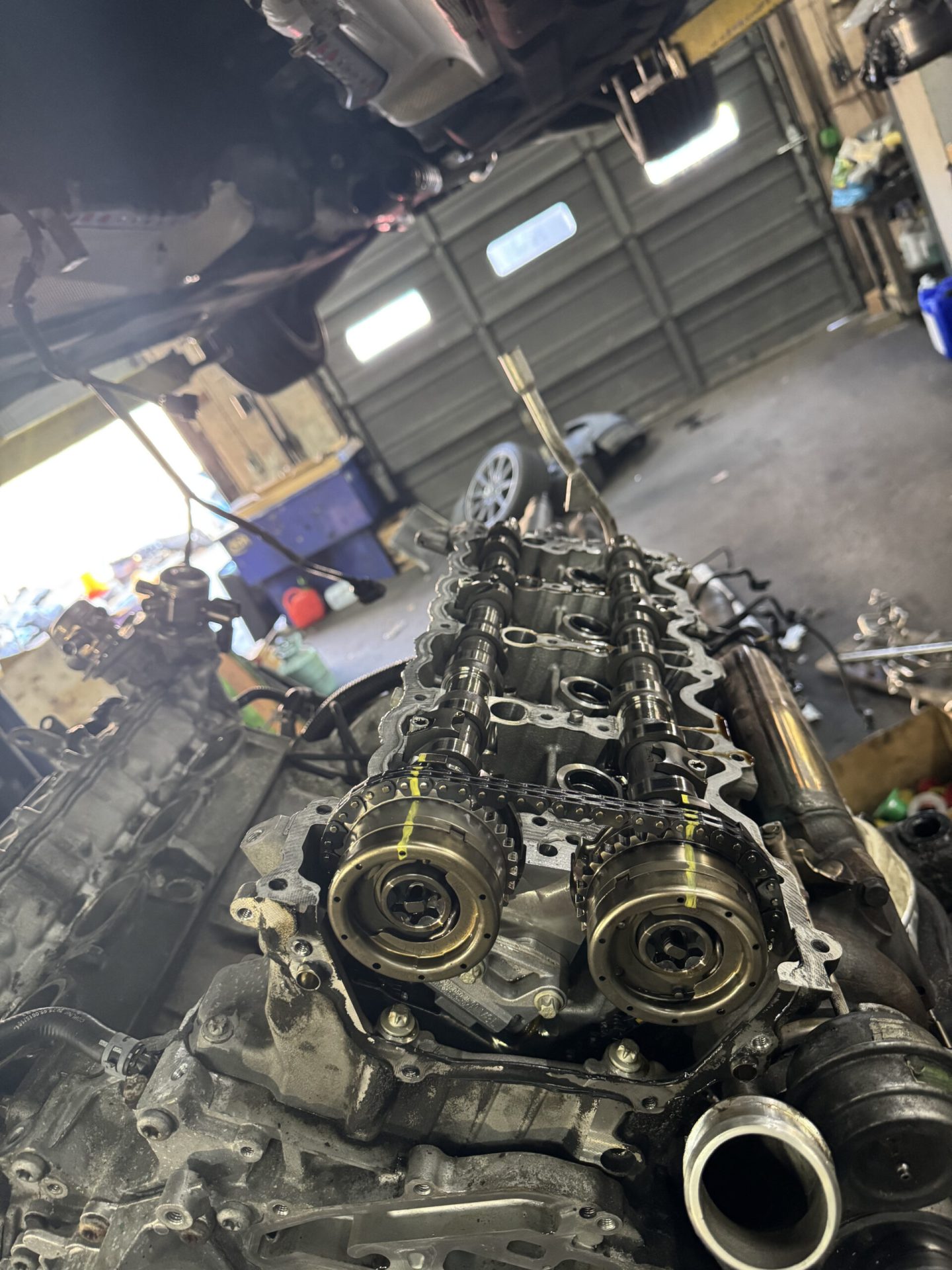

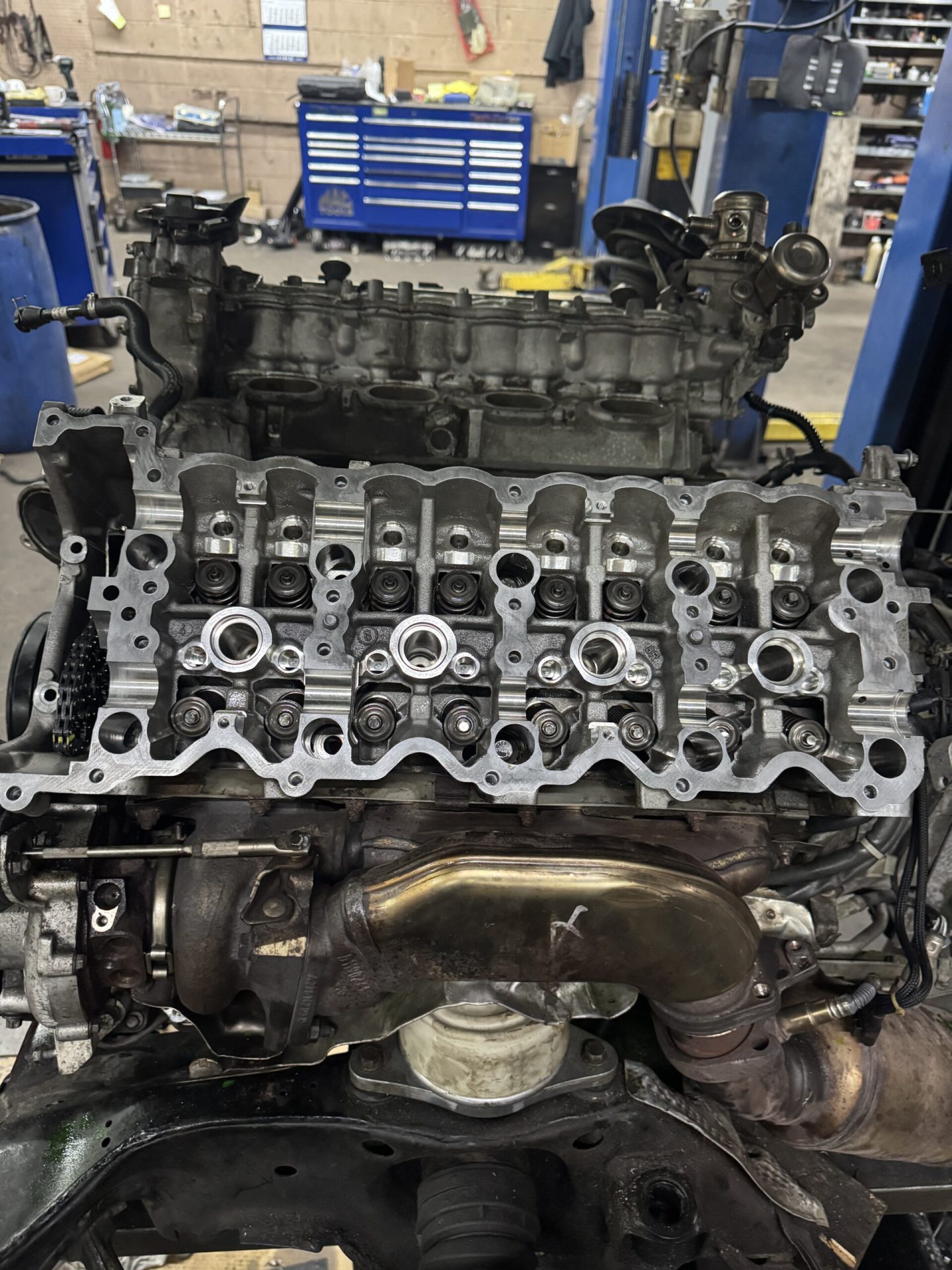

With the engine on the stand, we removed both cylinder heads to inspect the timing chain, cam phasers, and head gasket surfaces. The M157 V8 uses a complex four-cam, 32-valve design with variable valve timing on all four camshafts.
Key findings during our inspection:
- Head gasket showing signs of breach between cylinders 3 and 4
- Timing chain stretched beyond service limit
- Cam phaser solenoids showing internal wear

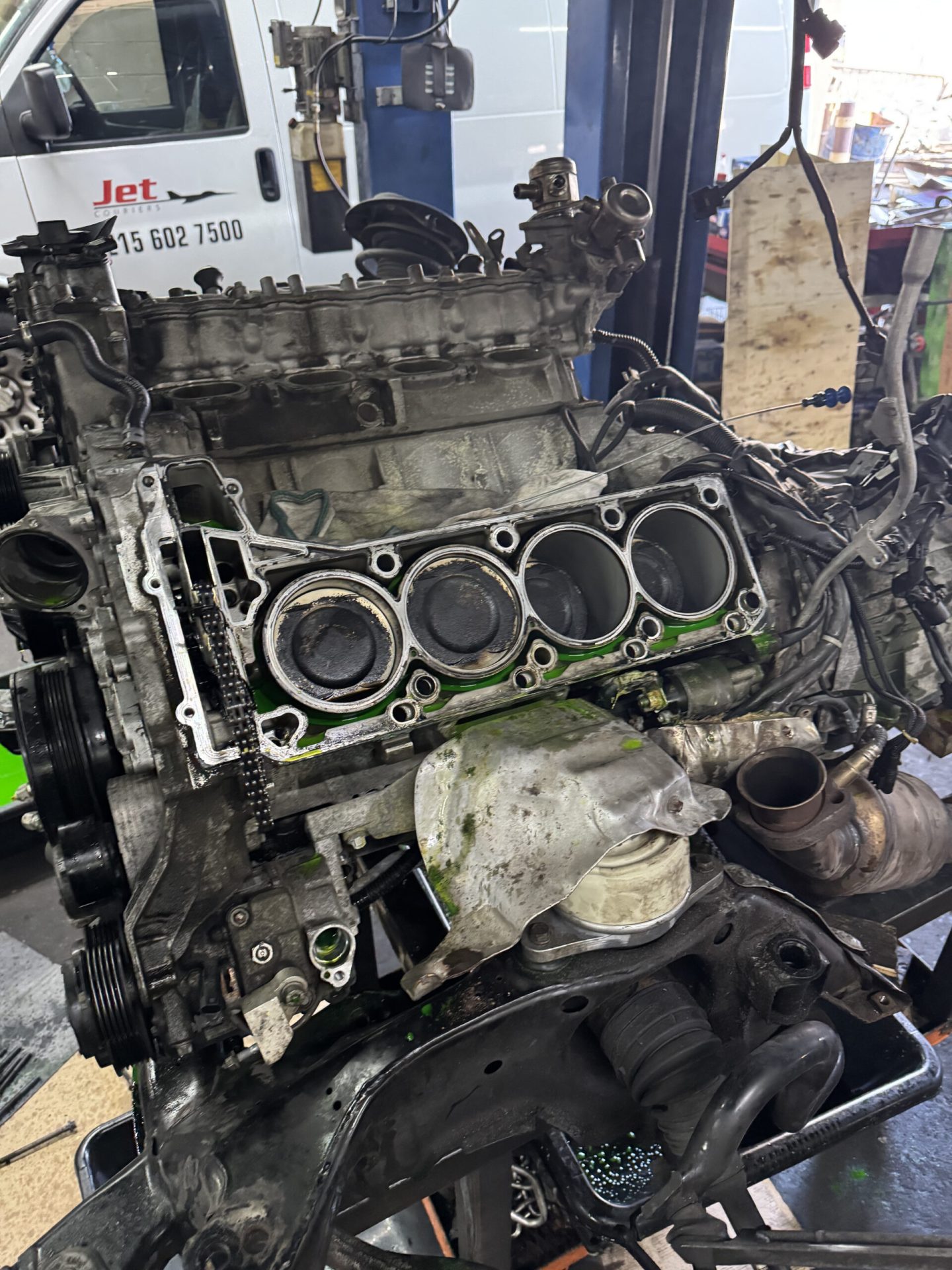

- Cylinder bore measurements within factory specifications
Professional Rebuild: Attention to Detail
Our rebuild process for this E63 AMG engine included:
- New head gaskets (both banks) with OEM Mercedes-Benz parts
- Complete timing chain kit — chains, guides, tensioners, and cam phasers
- New valve stem seals on all 32 valves
- Fresh coolant system components — thermostat, water pump, and hoses
- New serpentine belt and tensioner
- Full synthetic oil change with AMG-spec 0W-40
Cost of Mercedes E63 AMG Engine Rebuild in Philadelphia
A full engine-out rebuild on a Mercedes-AMG V8 biturbo is a major investment. At dealer prices in the Philadelphia area, this repair can run $15,000–$25,000+. At TOP CONCEPT, we provide the same quality of work using OEM and OEM-equivalent parts at significantly more affordable rates.
We provide detailed estimates before starting any work, so there are no surprises. Every customer receives a full breakdown of parts and labor costs upfront.
Can I drive my E63 AMG with a check engine light?
We recommend bringing it in for diagnostics as soon as possible. Continuing to drive with engine issues can cause further damage and increase repair costs significantly.
Do you work on other Mercedes-AMG models?
Yes. We service all Mercedes-Benz and AMG models including C63, E63, S63, GLE 63, GLC 43/63, and SL-class. We also work on all other makes — see our full list of services.
What areas do you serve?
Our shop is located at 6920 New State Rd, Philadelphia, PA 19135. We serve all of Philadelphia including Northeast Philly, Tacony, Mayfair, Holmesburg, Torresdale, as well as Bensalem, Levittown, and surrounding Bucks County communities.
