This blue Ford Mustang GT arrived at our Philadelphia shop with an obvious problem: a thick cloud of white smoke billowing from the exhaust at idle. White smoke (not steam) from a warm engine almost always points to the same root cause — coolant entering the combustion chamber, usually through a failed head gasket or a cracked cylinder head. On a V8 Mustang the diagnosis follows a specific path before any teardown begins.
The Symptom: Why White Smoke Matters
White exhaust smoke comes in two flavors:
- Thin white vapor on cold start — normal condensation, clears within a minute
- Thick white smoke that persists when warm — coolant being burned in the combustion chamber. This is what we saw on this Mustang.
Persistent white smoke is never something to drive on. The coolant entering the cylinder washes the oil film off the cylinder walls, accelerates ring wear, and can hydro-lock the engine if enough collects in a cylinder during a cold start.
Diagnostic Process on the Ford V8
Before anything comes apart, we run the diagnostic sequence to confirm the failure mode and rule out cheaper causes:
- Coolant level and condition — overflowing? Smelling of exhaust? Oil floating on top?
- Combustion gas test — chemical block test on the radiator detects exhaust gases in the coolant (positive = head gasket / cracked head)
- Cylinder leakdown test — pressurize each cylinder at TDC and listen for air leaking into the cooling system
- Compression test — confirm cylinder sealing
- Spark plug inspection — a steam-cleaned plug points to the leaking cylinder
Common Failure Points on Ford V8
The Ford modular V8 family (4.6L 2V/3V, 5.4L 3V, and the 5.0L Coyote) all have known head gasket and cylinder head issues. The 4.6L 3V and 5.4L 3V are particularly prone to cracked exhaust manifolds and warped heads from prolonged overheating. The 5.0L Coyote has experienced timing chain issues that can cause secondary head problems.
Whatever the engine version, a confirmed head gasket job means:
- Pull intake manifold, valve covers, exhaust manifolds
- Remove timing components and cylinder heads
- Send heads out for pressure-testing, surface check, and machining if warped
- Reinstall with new head gaskets, head bolts (single-use TTY), all gaskets and seals exposed
- Refill with fresh coolant, prime the system, road test under load

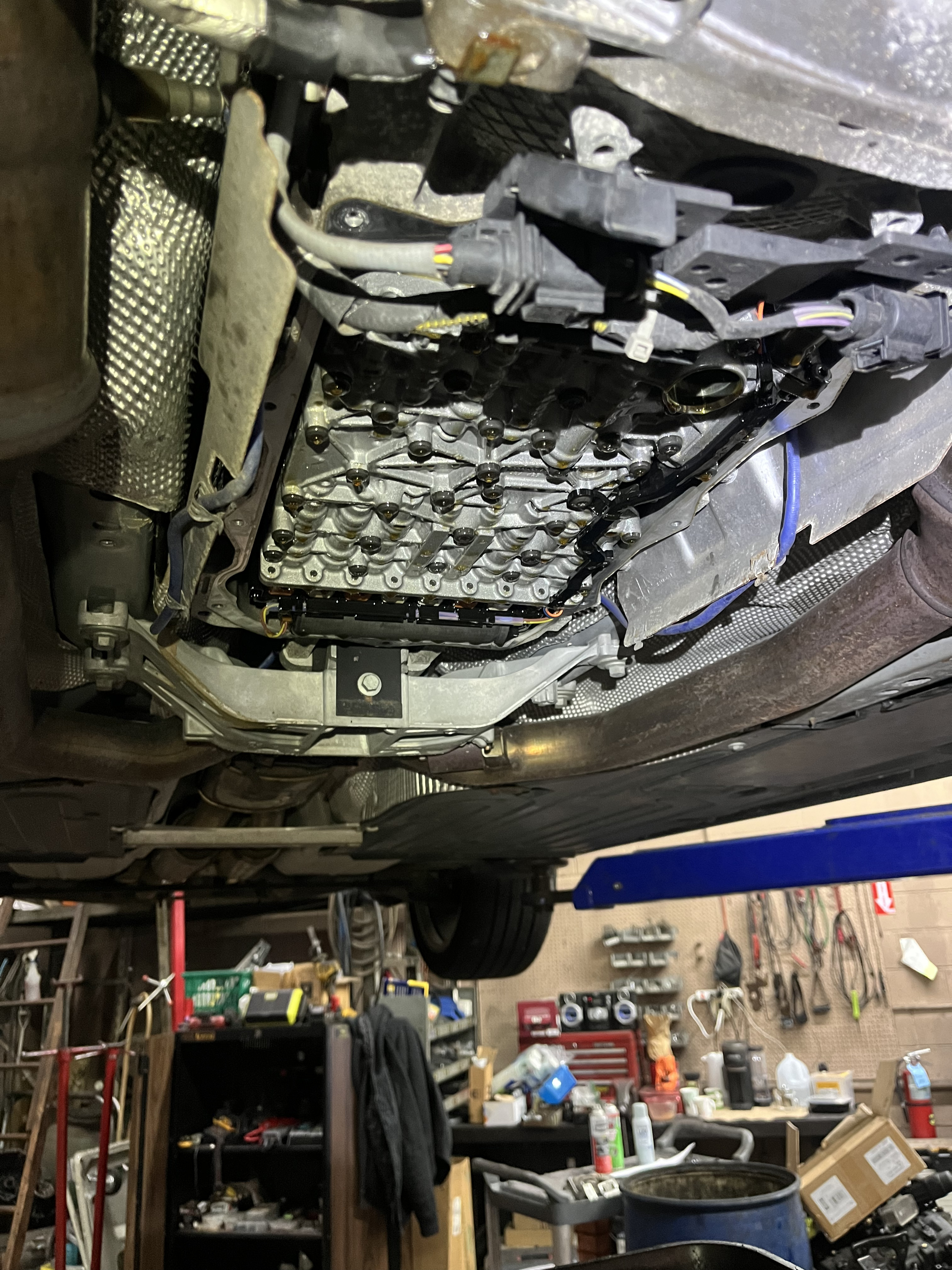

Underbody Inspection
While the Mustang was on the lift we also inspected the rest of the underbody — exhaust system, transmission, axle. On older performance cars it’s common to find related issues that have built up over time, and addressing them at the same time as a major job like head gaskets is more economical than coming back later.
