Mercedes-Benz C-Class Engine Wiring Harness Replacement at TOP CONCEPT Philadelphia
This black Mercedes-Benz C-Class came into our Northeast Philadelphia shop with multiple electrical faults — intermittent sensor errors, a check engine light that wouldn’t clear, and a degraded engine wiring harness that had failed in several places. The C-Class engine harness on these models runs along the top of the engine where heat from the cylinder head bakes the insulation over time, so by the 100,000-mile mark the wires often crumble at the connectors.
Why the Engine Harness Had to Come Out
Before pulling the harness, we did a full diagnostic scan and isolated the dead circuits. The plastic insulation on the main engine loom had cracked in multiple spots, exposing copper. A few connectors at the fuel injectors and on the intake side had melted and lost continuity. The only correct fix on this job was a complete harness replacement — splicing wouldn’t hold up.

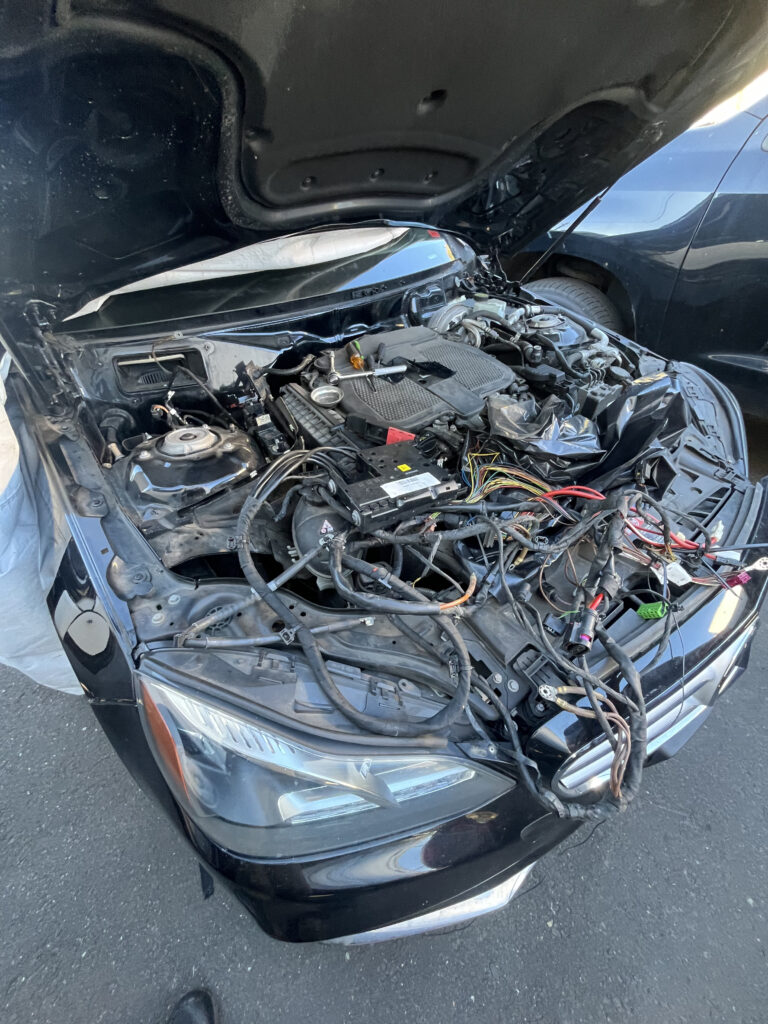

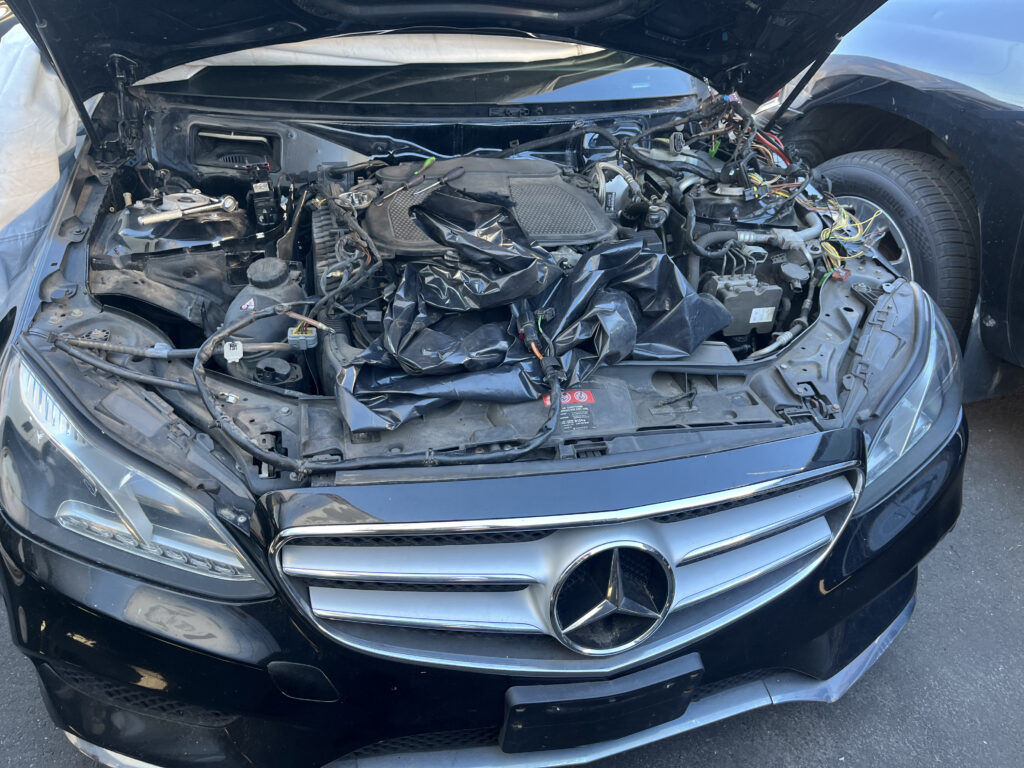

To get to the harness we removed the front clip (bumper, headlights, radiator support) so we had clear access to every connector. With everything out of the way, the full extent of the heat damage was easy to see.
The Job: Step by Step
- Pre-pull diagnostic scan — recorded every fault code so we could verify the new harness restored every circuit.
- Front clip removal — bumper, grille, headlights, and the radiator support came off as one assembly.
- Battery and fuse box disconnection — power off, distribution block opened up so each branch could be traced.

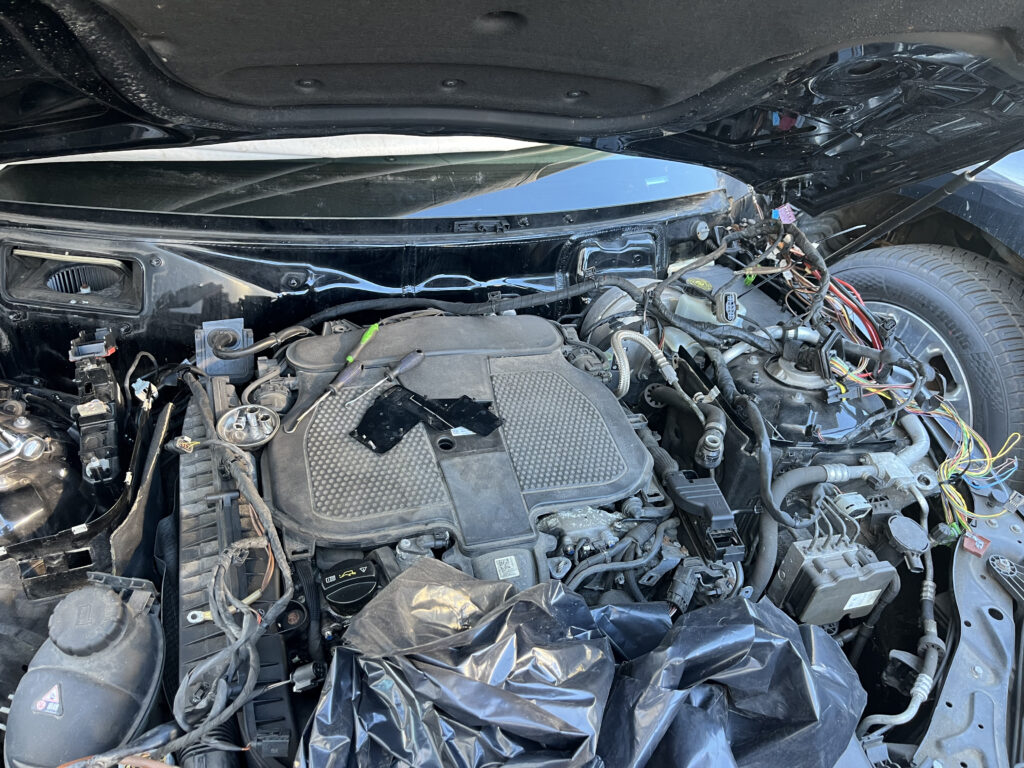

- Old harness extraction — every connector at the engine, transmission, sensors, and firewall labeled before disconnection.
- New OE-spec harness installation — routed exactly as factory, secured with new clips and looms in the correct positions.
- Rescan and road test — codes cleared, all sensors live, no new faults after 30 minutes of driving.
Damaged Fuse Box and Power Distribution

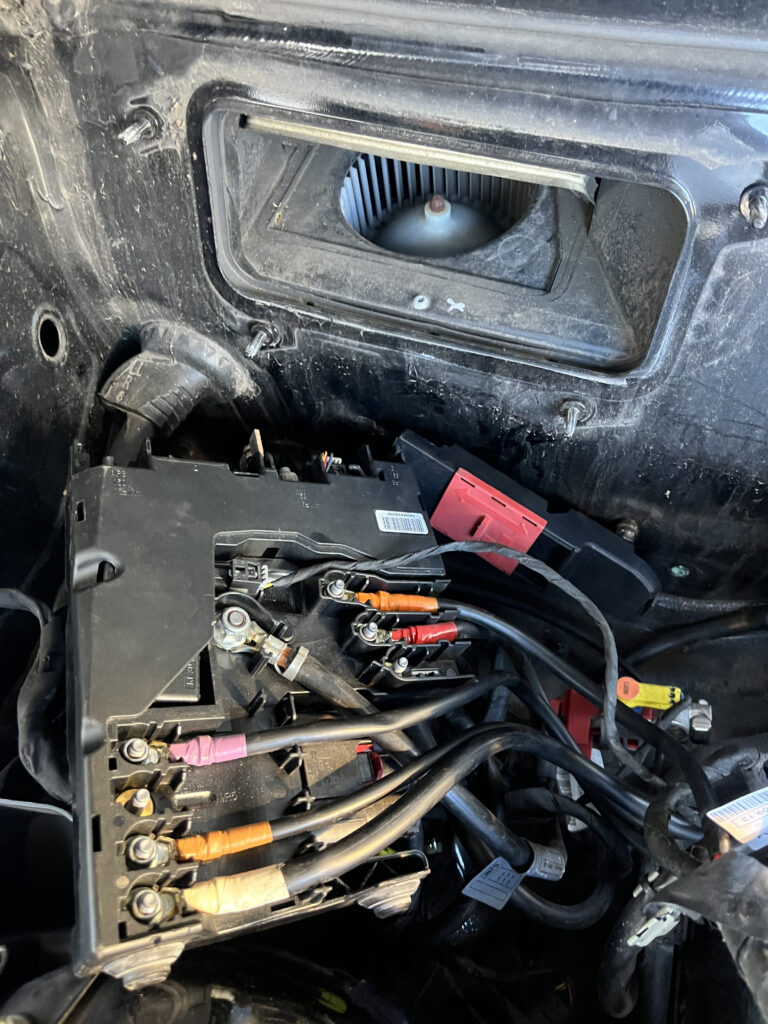

The fuse and relay block on this car also showed signs of heat — a couple of fuse blades had discolored from sustained current draw through degraded wiring. We cleaned the contacts, verified each circuit, and replaced two relays as preventative maintenance while we were already in there.

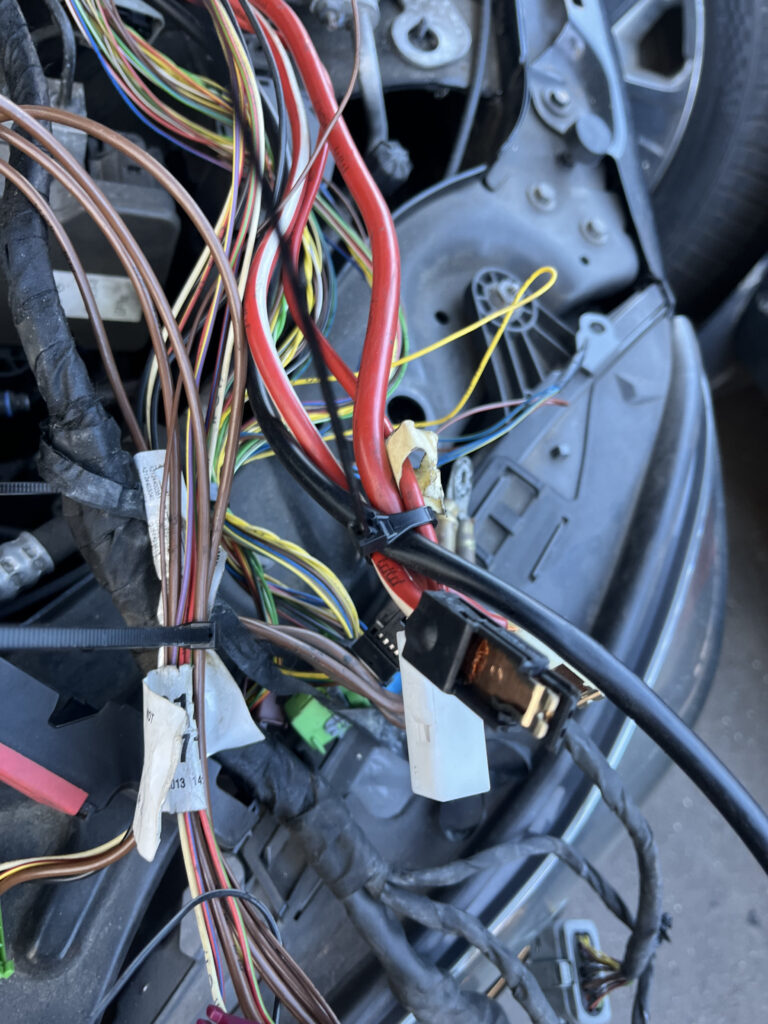

The Old Harness — Why It Failed

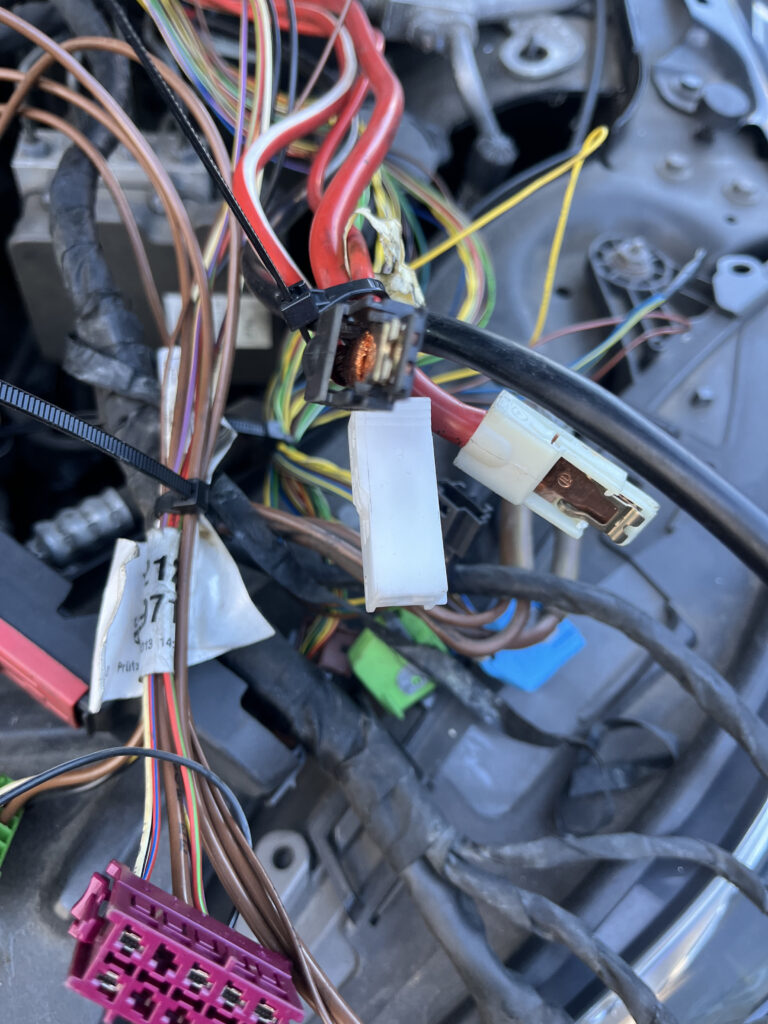

Once the old harness was out, the failure points were obvious. The wires nearest the cylinder head had brittle, cracking insulation. Two large connectors — one for the injector circuit, one for a temperature sensor — had melted plastic where they sit close to the manifold. This is a common pattern on the M271 and M274 four-cylinder Mercedes engines: the harness is in the wrong thermal environment for its insulation rating to last past 100k miles.
What This Means If You Drive a Mercedes
If your Mercedes-Benz C-Class (or any M271/M274-equipped model — including the E-Class, SLK, and CLA) has any of these symptoms, the engine harness should be inspected:
- Multiple unrelated check-engine codes that come back after clearing
- Random misfires that don’t track to one specific cylinder
- Sensor codes (MAF, MAP, O2, coolant temp) that fail intermittently
- Visible cracking in the insulation when you peel back the loom
- A burning-plastic smell from under the hood after a long drive
Pricing and What to Expect
An engine wiring harness replacement on a Mercedes-Benz C-Class is a full-day job. Parts run $700–$1,400 depending on which harness is needed (engine, ECM, or transmission sub-loom). Labor on this job typically takes 6–10 hours because of how much of the front end has to come off to route the new harness correctly.
At dealership rates this job often quotes north of $3,500. We do it for considerably less while using OE-spec parts and giving you a full warranty on both parts and labor.
