Computer Diagnostics & Programming

Computer Diagnostics & Programming in Philadelphia, PA

The modern automobile is not just a mechanical machine — it is a sophisticated network of electronic control units, sensors, and actuators that manage everything from fuel injection timing to transmission shift points to anti-lock brake modulation. When something goes wrong, your vehicle’s onboard computer stores diagnostic trouble codes (DTCs) that point directly to the source of the problem. At TOP CONCEPT LLC, we use professional-grade scan tools and factory-level software to read those codes accurately, interpret what they mean for your specific vehicle, and perform any necessary reprogramming — giving you real answers, not guesswork.

What Is Computer Diagnostics and Why Does It Matter?

Every vehicle built after 1996 is equipped with an OBD-II (On-Board Diagnostics II) port that allows technicians to communicate directly with the vehicle’s computer systems. When your check engine light, ABS light, traction control light, or any other warning indicator illuminates, the corresponding control module has detected a fault and logged a diagnostic trouble code.

Reading those codes is only the first step. A code like P0420 (catalyst efficiency below threshold) does not automatically mean you need a new catalytic converter — it might indicate an upstream oxygen sensor fault, an exhaust leak, or a fuel delivery issue that is affecting combustion. Accurate diagnosis requires combining code data with live sensor readings, freeze frame data, and the technician’s knowledge of how that system operates. This is why a $20 code reader from an auto parts store is not a substitute for professional diagnostics.

Warning Lights We Diagnose

Our diagnostic equipment communicates with all major vehicle systems, not just the engine. We diagnose faults in:

• Engine Control Module (ECM) — Fuel system, ignition, emissions, air/fuel ratio
• Transmission Control Module (TCM) — Shift quality, torque converter, solenoid faults
• Anti-lock Brake System (ABS) — Wheel speed sensors, hydraulic control unit, pump motor
• Supplemental Restraint System (SRS / Airbag) — Clock spring, impact sensors, module faults
• Body Control Module (BCM) — Lighting, windows, door locks, communication bus errors
• TPMS Module — Tire pressure sensor faults and communication errors
• EVAP System — Purge valve, vent valve, fuel tank pressure sensor, leak detection
• Hybrid / EV Battery Management — For hybrid vehicles, cell balance, temperature, and charge fault codes

Professional Scan Tools vs. Basic Code Readers

Consumer-grade OBD-II code readers read generic fault codes and not much else. Professional scan tools used at TOP CONCEPT LLC go far beyond that:

• Bi-directional controls — We can command individual components (fuel injectors, solenoids, fans, actuators) to activate and verify their operation
• Live data streaming — We monitor dozens of sensor parameters simultaneously to catch intermittent faults that do not set a code
• Freeze frame data — We review the exact operating conditions (RPM, load, coolant temp) when the fault was first detected
• Module-specific codes — Manufacturer-enhanced codes that go beyond the generic OBD-II standard and reveal far more detail
• Programming and calibration — We can reflash control modules, reset adaptations, and perform calibration procedures

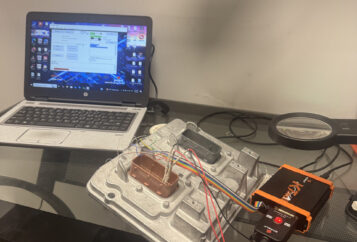

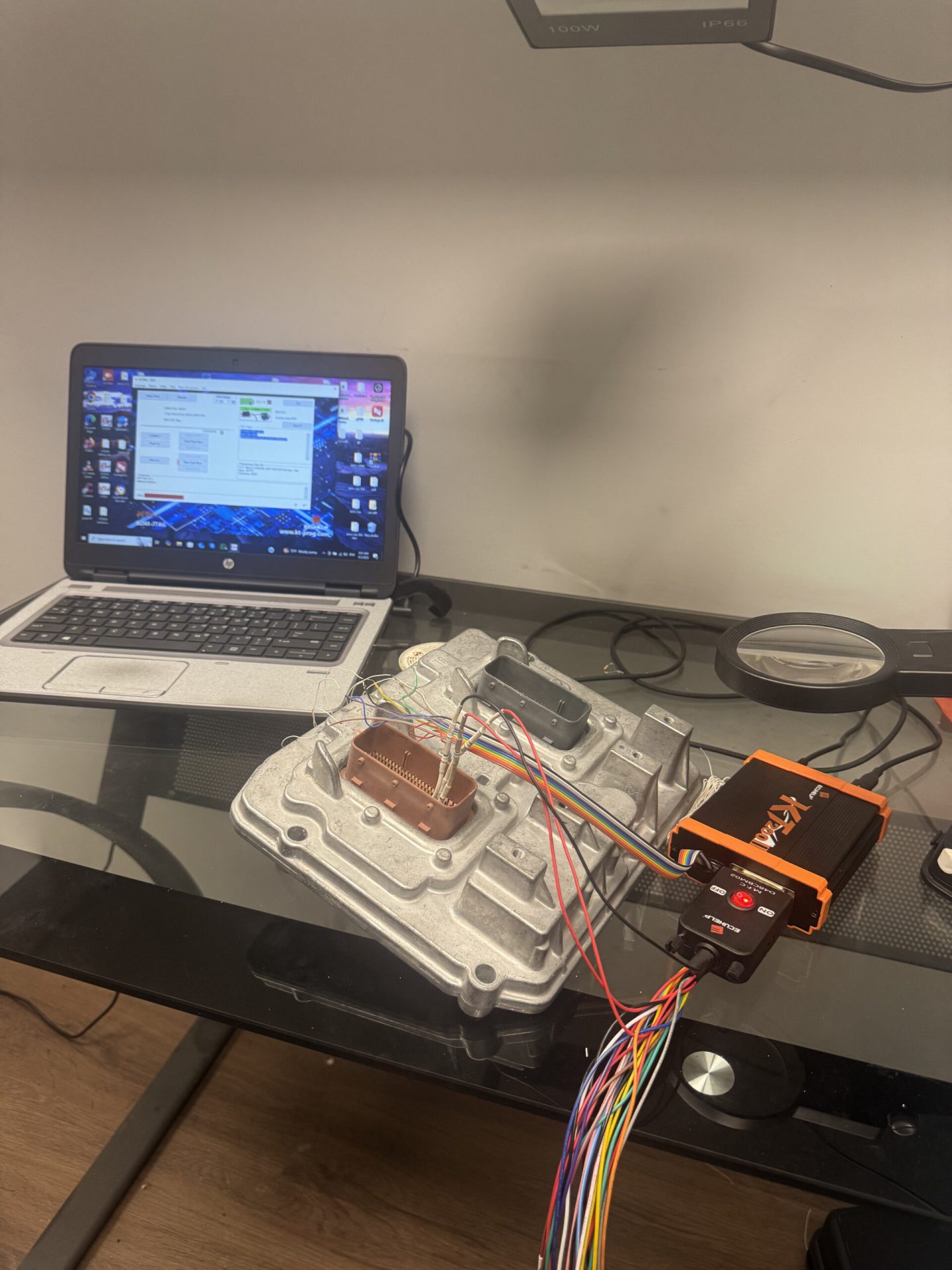

ECU Programming & Module Reprogramming

Modern vehicles frequently receive software updates from manufacturers to address drivability concerns, fuel economy improvements, transmission shift logic refinements, and emissions compliance. When you replace a faulty control module, the new unit must be programmed to match your vehicle’s VIN and configuration — otherwise it will not function correctly or may not function at all.

TOP CONCEPT LLC performs ECU programming services including:

• VIN flashing — Programming replacement ECMs, TCMs, BCMs, and other modules to the vehicle
• Software updates (reflashing) — Applying manufacturer-released calibration updates to correct known issues
• Throttle body relearn — Required after cleaning or replacing the throttle body on drive-by-wire systems
• Transmission adaptation reset — Clears learned shift adaptations after repairs so the TCM can relearn correctly
• Immobilizer / PATS programming — Key and transponder programming for anti-theft systems
• Injector coding — Required on many diesel and direct-injection engines when injectors are replaced

Diagnosing Intermittent and Elusive Problems

Some of the most frustrating automotive problems are the ones that do not happen consistently. Your car might stall at idle — but only on cold mornings. The transmission might hesitate — but only when the engine is fully warmed up. These intermittent faults often store no codes at all, or they store a code temporarily and then clear themselves.

Our technicians are experienced at capturing intermittent faults using data logging, which records all sensor values continuously during a test drive. Reviewing that recorded data often reveals the exact moment a sensor signal dropped out or a fuel pressure event occurred — even if the fault did not illuminate a warning light. This systematic approach saves you money by avoiding the “replace parts and hope” strategy.

Serving Philadelphia, Northeast Philly, Bucks County & Montgomery County

Drivers across the greater Philadelphia area trust TOP CONCEPT LLC for accurate diagnostics and module programming. Our shop at 6920 New State Rd, Philadelphia, PA 19135 is conveniently located in Northeast Philadelphia, easily accessible from Mayfair, Holmesburg, Frankford, and Torresdale. We regularly service vehicles from Bucks County communities including Bensalem and Bristol, and from Montgomery County towns like Cheltenham and Abington. Rather than booking an appointment weeks out at a dealership, bring your vehicle to us for same-week diagnostic service.

Frequently Asked Questions About Computer Diagnostics

My check engine light is on but the car drives fine — do I still need diagnostics?

Yes. A steady check engine light indicates a fault that the computer has confirmed through multiple drive cycles. Even if you feel no change in driving behavior, the underlying issue may be affecting fuel economy, increasing emissions, or placing additional stress on related components. Some faults — like a misfiring cylinder — cause invisible damage to the catalytic converter that compounds into a much more expensive repair if ignored. Address warning lights promptly.

The parts store read my codes for free — why do I need professional diagnostics?

Parts store code reads identify which code is stored, not what caused it. A technician uses that code as a starting point for a structured diagnostic process — testing the specific circuit, comparing live data to expected values, and ruling out causes systematically. Replacing the part mentioned in the code without proper diagnosis is a common and costly mistake.

Can you clear warning lights without fixing the problem?

We can clear codes, but if the underlying fault is still present, the light will return within a short drive. We always recommend repairing the root cause before clearing codes. We do not clear lights to mask problems — our goal is to fix the issue correctly so the light stays off permanently.

Do you work on European vehicles like BMW, Audi, or Mercedes-Benz?

Yes. We have professional scan tools with enhanced manufacturer-level coverage for European brands that goes beyond generic OBD-II. Many faults on European vehicles only appear as manufacturer-specific codes that require brand-specific diagnostic software to read and interpret correctly.

How long does a diagnostic take?

A standard diagnostic scan and initial fault evaluation typically takes 45–90 minutes. Complex intermittent problems or issues requiring test drives and data logging may take longer. We will give you an estimated time when you drop off your vehicle and keep you informed if additional time is needed.

Get Accurate Answers — Schedule Your Diagnostic Today

Do not drive around with a warning light on or waste money replacing parts based on guesswork. The professional diagnostic team at TOP CONCEPT LLC will find the root cause of your vehicle’s problem and explain it clearly before recommending any repairs.

Call us at (267) 242-4992 or stop by 6920 New State Rd, Philadelphia, PA 19135. We are open Monday through Friday 9 AM–6 PM and Saturday 9 AM–2 PM.
